Dartford - St Clements 2

Pollutant Band Concentration Period Last updated
Nitric oxide (NO) Not applicable 4 µg/m3 hourly mean 12/11/2024 03:00
Nitrogen dioxide (NO2) LOW (1) 20 µg/m3 hourly mean 12/11/2024 03:00
Nitrogen oxides as nitrogen dioxide (NOXasNO2) Not applicable 26 µg/m3 hourly mean 12/11/2024 03:00
PM10 particulate matter (Grav Equiv) LOW (2) 18 µg/m3 24 Hour mean 12/11/2024 03:00
Information: Move mouse over graph to see dates, times and data labels.
Pollutants shown in graph
Parameter Parameter Name
NO Nitric oxide
NO2 Nitrogen dioxide
NOXasNO2 Nitrogen oxides as nitrogen dioxide
PM10 PM10 Particulate Matter

Site Information
Altitude Not Available
Coordinates (Lat/Long) 51.448824, 0.279379
Environment Type Roadside: A site sampling between 1m of the kerbside of a busy road and the back of the pavement. Typically this will be within 5m of the road, but could be up to 15m.
Kerb Distance 2.5m
Height 2.1 metres Metres
Site Comments Not Available
Parameter Date Started Date Ended
Nitric oxide 03/01/2019 -
Nitrogen dioxide 03/01/2019 -
Nitrogen oxides as nitrogen dioxide 03/01/2019 -
PM10 particulate matter (Grav Equiv) 03/01/2019 -

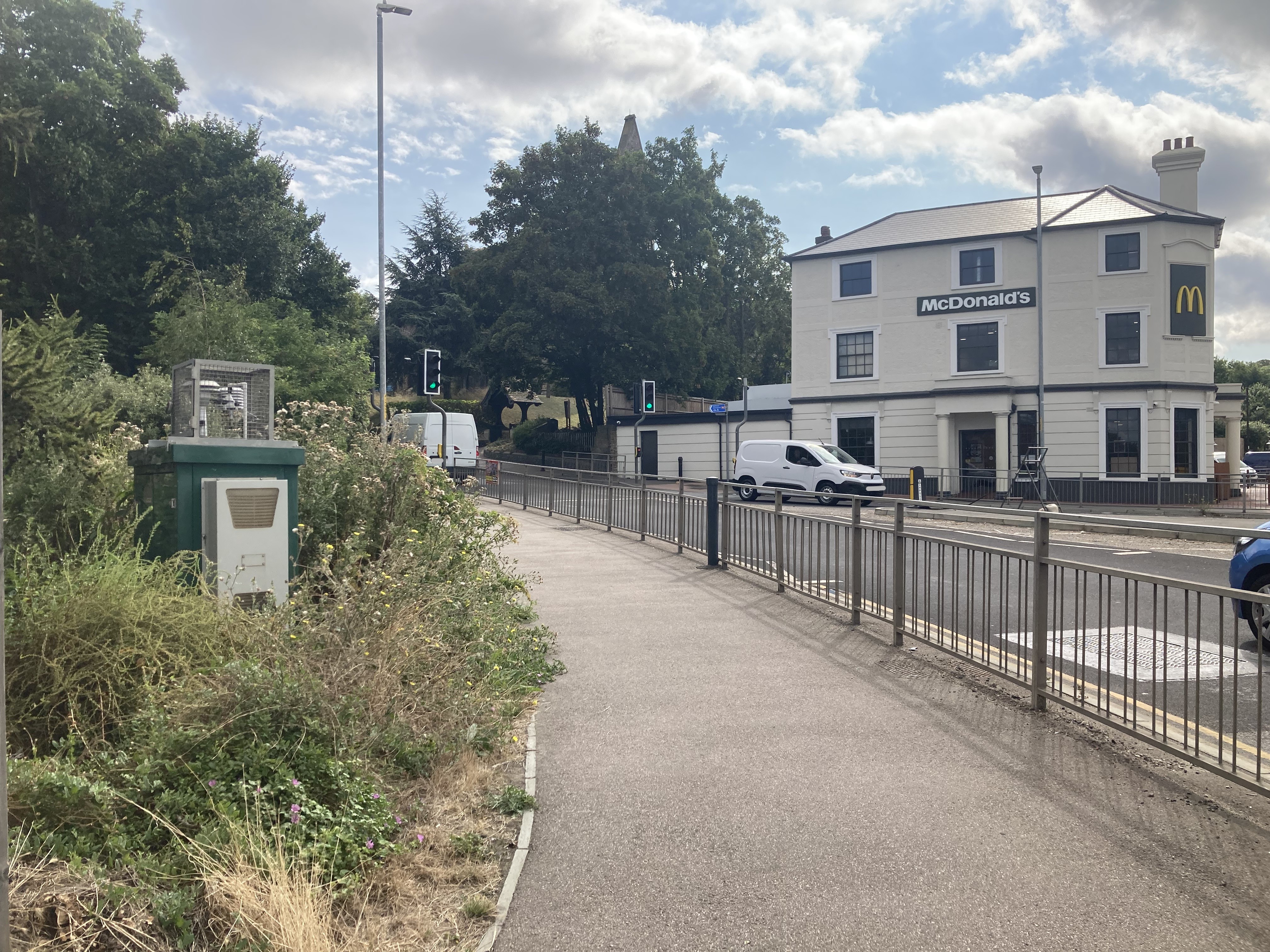

Dartford - St Clements 2 site: Site view
Site
Dartford - St Clements 2 site: North view
North

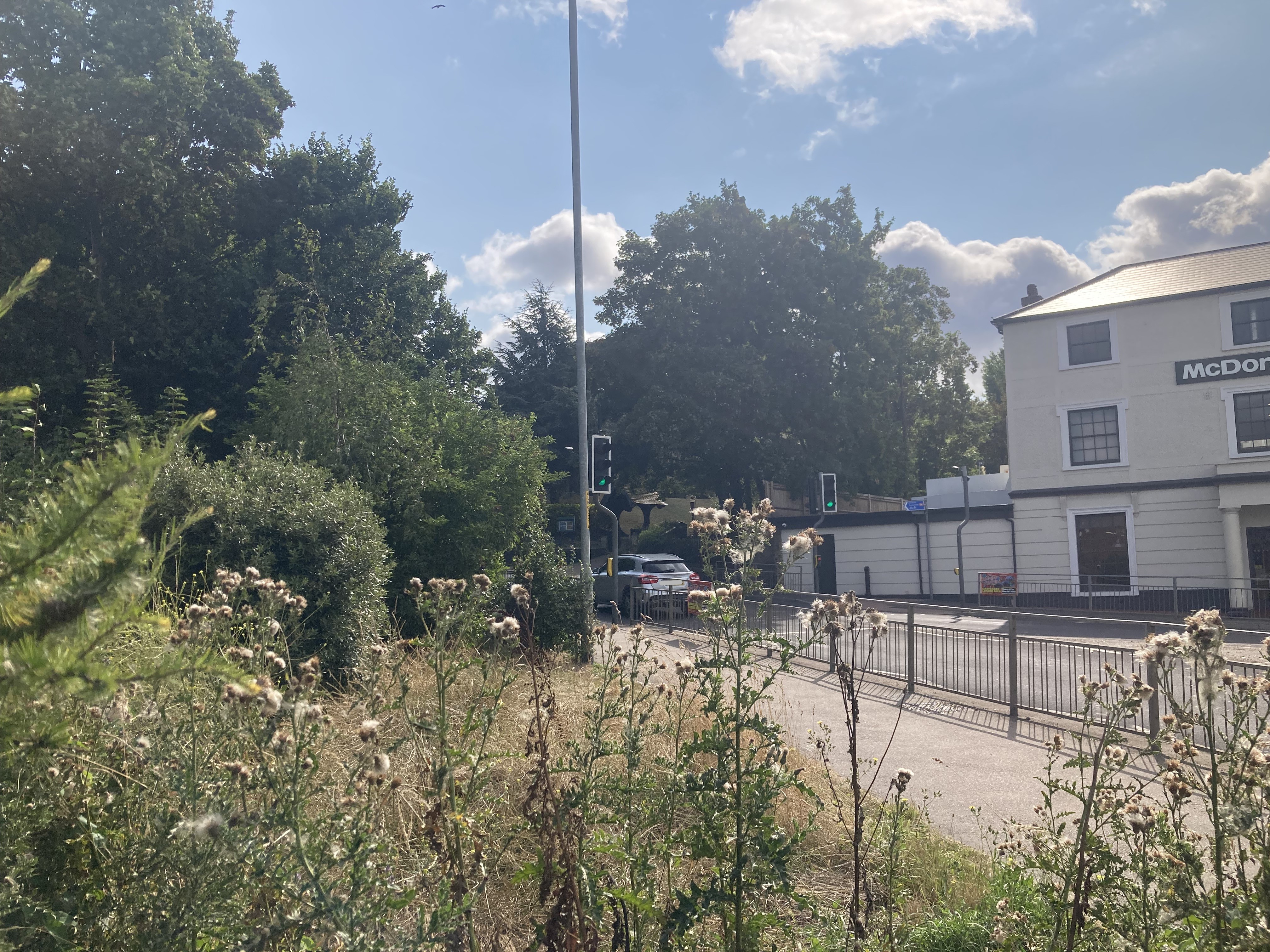

Dartford - St Clements 2 site: East view
East

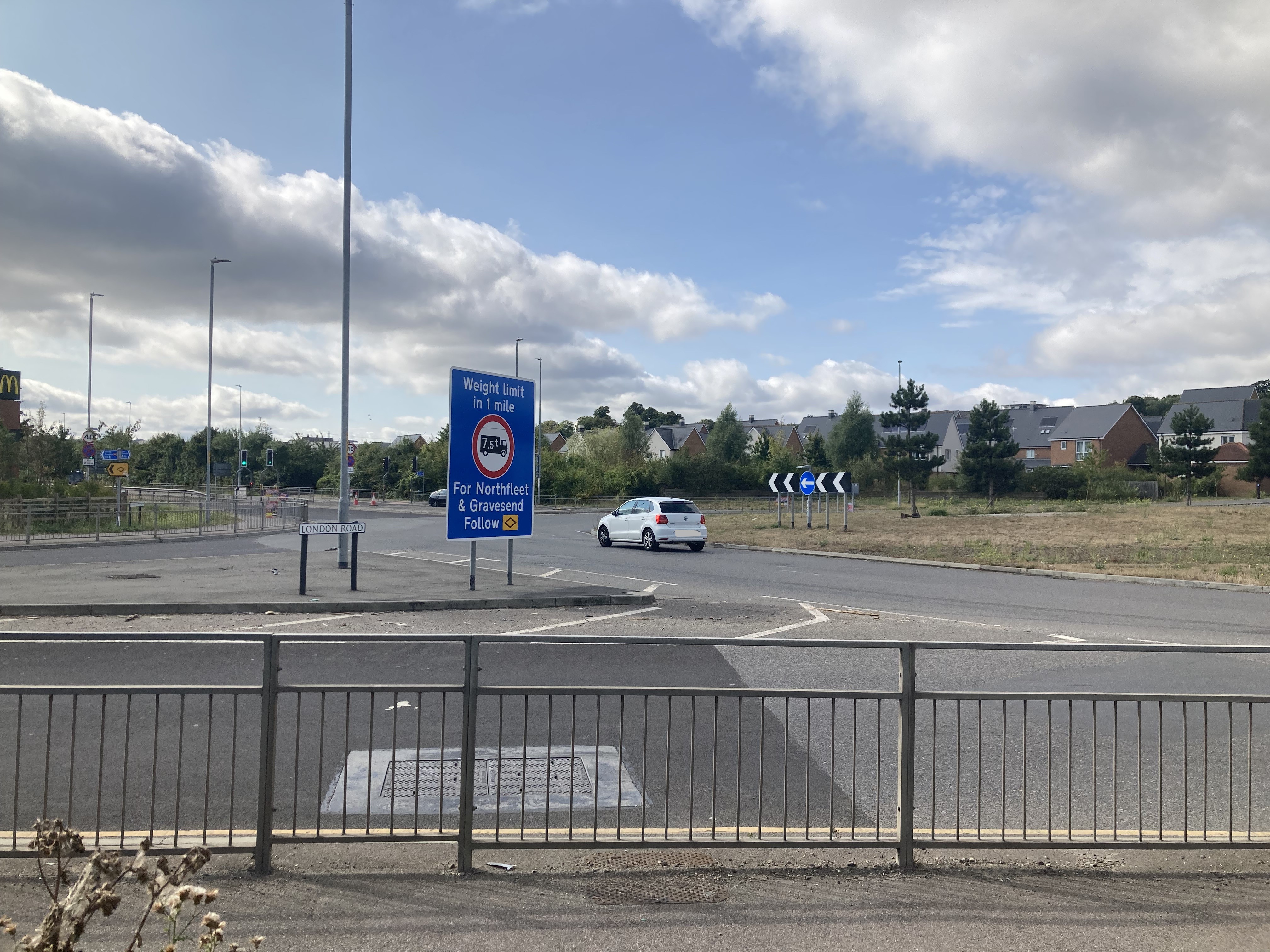

Dartford - St Clements 2 site: South view
South

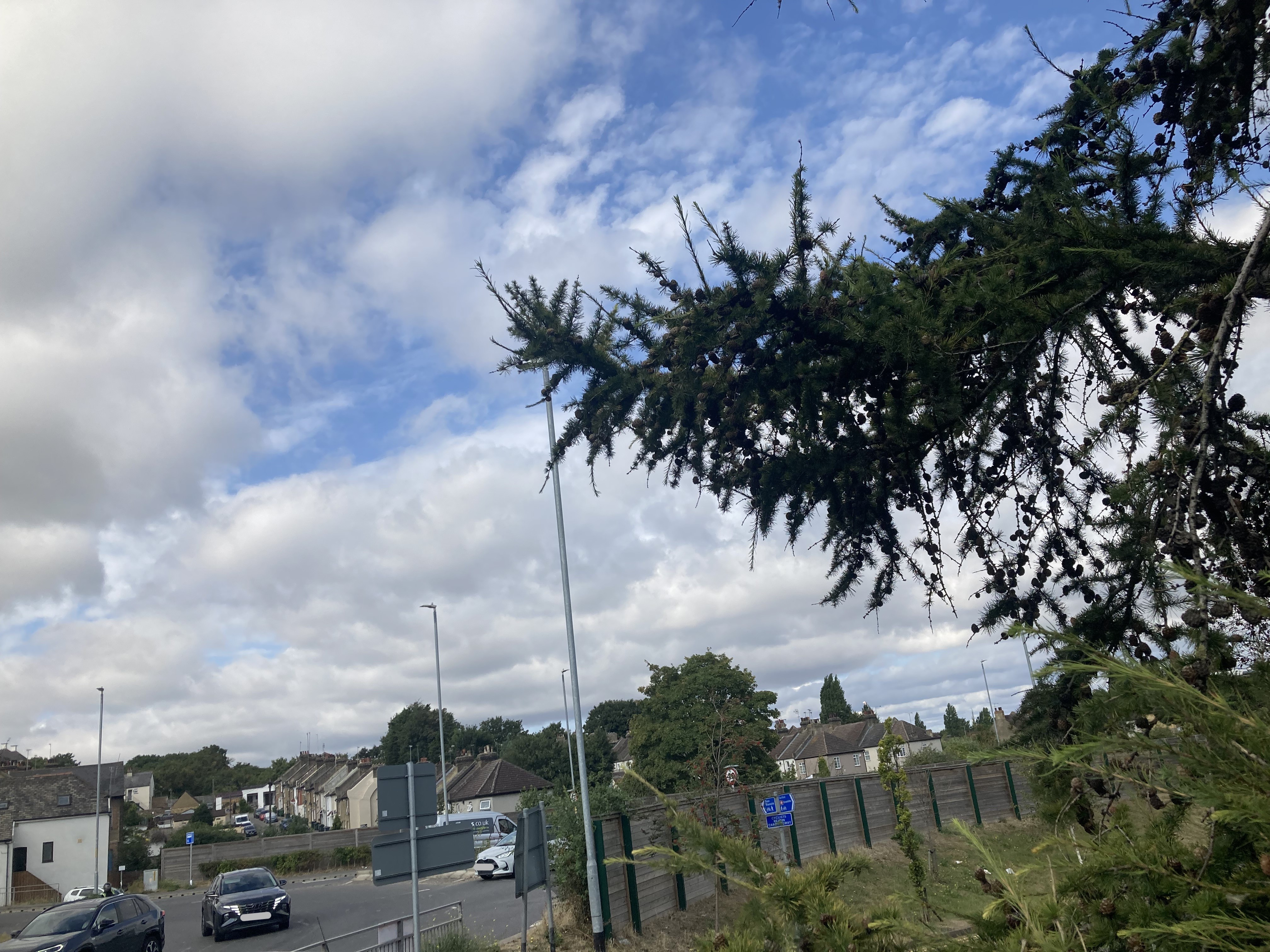

Dartford - St Clements 2 site: West view
West
